Kubota Tractor

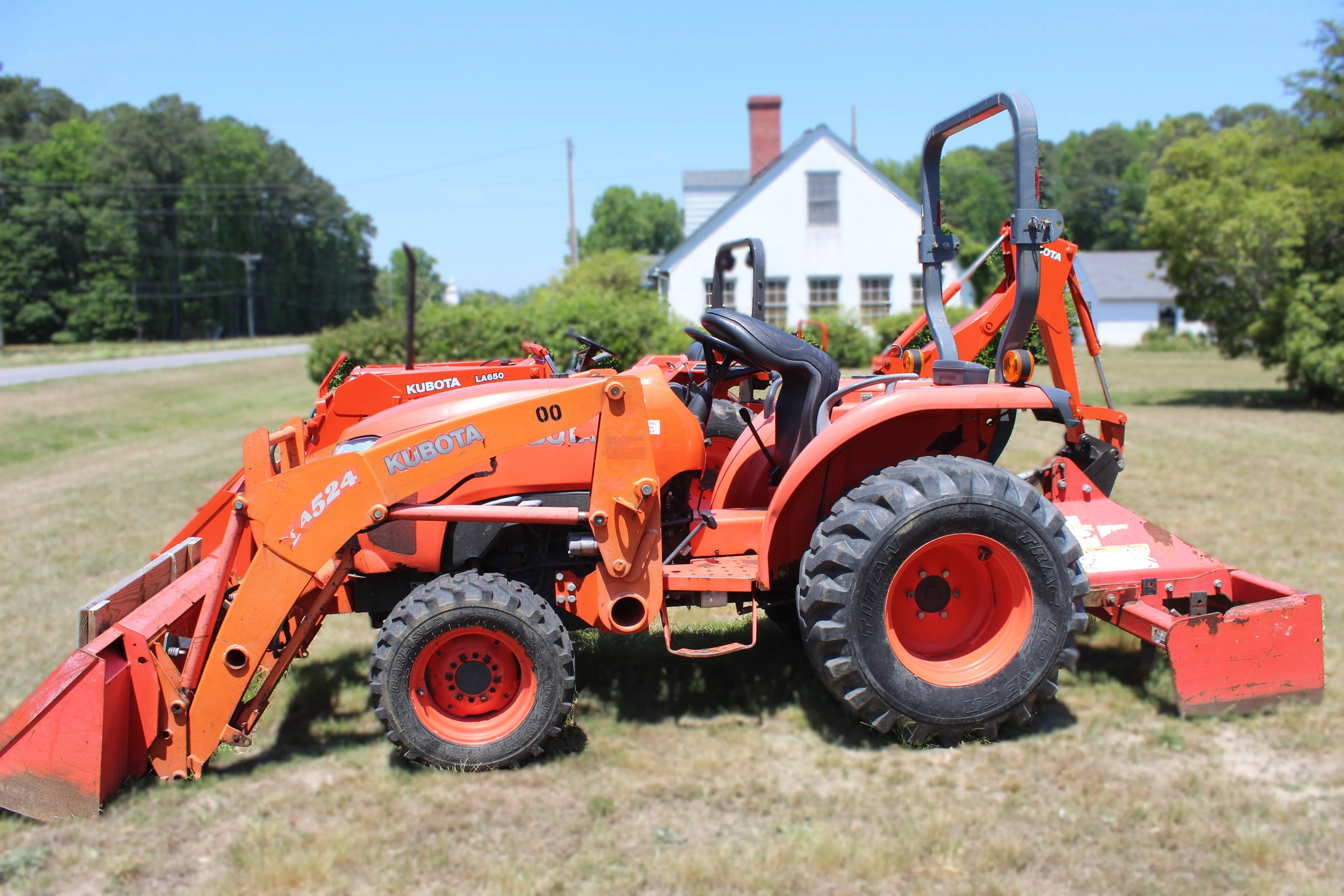

The Kubota L3800 is a robust compact utility tractor designed for a variety of tasks in farming, landscaping, and light construction. This model is available in several variants including 2WD and 4WD options, catering to different terrain and usage needs. It features a powerful Kubota 1.8L 3-cylinder diesel engine, ensuring reliable performance and efficiency. The tractor is equipped with either an 8-speed gear transmission or a hydrostatic transmission, providing flexibility and ease of operation. With its hydrostatic power steering and wet disc brakes, the L3800 offers smooth handling and effective stopping power.

• Engine Power (Gross): 37.4 hp (27.9 kW)
• Engine Power (Net): 30.3 hp (22.6 kW)
• PTO Power (Gear): 31.5 hp (23.5 kW)
• PTO Power (Hydro): 30.3 hp (22.6 kW)
• Drive Options: 4x4 MFWD 4WD
• Differential Lock: Rear standard
• Steering Type: Hydrostatic power
• Brakes: Wet disc
• Fuel Capacity: 10 gallons (37.9 L)
• Hydraulic System Capacity: 7.1 gal (gear), 6.2 gal (hydro)
• Pump Flow: 6.3 gpm (23.8 lpm)
• Total Hydraulic Flow: 10.1 gpm (38.2 lpm)
• Wheelbase: 63.3 inches (160 cm)
• Weight: 2480 to 2668 pounds
• Front Tire: 5.00-15
• Rear Tire: 11.2-24

Please click the link below to view the operators/safety manual:

KUBOTA L3200 WORKSHOP MANUAL Pdf Download | ManualsLib
